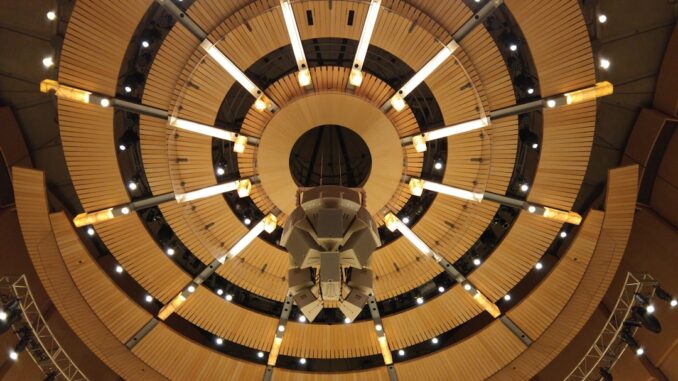

Advanced Room Acoustics: In-Depth Analysis and Treatment Strategies

Abstract

Room acoustics represents a critical discipline within architectural and electro-acoustic engineering, profoundly influencing the auditory experience within any enclosed space. While rudimentary acoustic interventions, such as the deployment of soft furnishings and basic acoustic panels, are frequently advised, a truly comprehensive mastery necessitates a profound understanding of the intricate physics governing sound wave propagation, the sophisticated methodologies of advanced acoustic treatment, and the pervasive impact of phenomena like room modes and reverberation time. This extensive report embarks upon an in-depth exploration of the fundamental science underpinning sound propagation across diverse room geometries, presenting meticulous explanations of various acoustic treatment modalities—encompassing broadband absorbers, sophisticated diffusers, and precisely tuned resonators. Furthermore, it meticulously examines cutting-edge techniques for the diagnostic identification and effective mitigation of complex acoustic anomalies. By rigorously integrating foundational theoretical principles with nuanced practical applications, this report aspires to furnish a holistic and authoritative framework for achieving optimal acoustic environments, thereby enhancing speech intelligibility, musical fidelity, and overall auditory comfort in a wide spectrum of applications, from critical listening environments to large-scale performance venues.

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

1. Introduction: The Imperative of Optimized Room Acoustics

The auditory milieu of an enclosed space is not merely an incidental byproduct of its physical construction; rather, it is a meticulously engineered or inherently emergent characteristic that wields immense influence over the perception and quality of sound. The fidelity of sound reproduction, the clarity of spoken word, and the overall psychological comfort experienced by occupants are all inextricably linked to the acoustic properties of a room. Historically, approaches to room acoustics have often leaned towards simplistic solutions, frequently overlooking the profound and multifaceted interactions between sound waves and the encompassing structural elements. Such superficial interventions, while offering some degree of amelioration, often fall short of addressing the nuanced challenges posed by complex acoustic phenomena, leading to sub-optimal auditory outcomes.

Achieving truly optimal acoustic performance demands a far deeper, more scientific exploration into the intricate behavior of sound waves within boundaries, coupled with the strategic deployment of advanced treatment methodologies. This report endeavors to bridge this knowledge gap, progressing beyond elementary concepts to illuminate the sophisticated principles and practical applications required for professional-grade acoustic design and remediation. It is a multidisciplinary field drawing upon physics, engineering, psychoacoustics, and architectural design, crucial not only for specialized environments like recording studios and concert halls but also increasingly recognized as vital for educational institutions, healthcare facilities, conference rooms, and even residential living spaces, where clear communication and a sense of calm are paramount (Everest & Pohlmann, 2015).

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

2. Fundamentals of Sound Wave Behavior in Enclosed Geometries

To effectively manipulate sound within a room, one must first comprehend its fundamental nature and how it interacts with the physical environment. Sound, at its core, is a mechanical wave—a series of pressure fluctuations—that propagates through a medium, typically air, by the oscillation of particles around their equilibrium positions. These oscillations manifest as compressions (regions of higher pressure and density) and rarefactions (regions of lower pressure and density), traveling at the speed of sound, which is approximately 343 meters per second (1,125 feet per second) in dry air at 20°C (68°F) (Russell, 2018).

Key characteristics of a sound wave include:
* Frequency (f): The number of complete cycles of compression and rarefaction per second, measured in Hertz (Hz). It dictates the perceived pitch of a sound.
* Wavelength (λ): The spatial period of the wave, or the distance over which the wave’s shape repeats. It is inversely proportional to frequency (λ = v/f, where v is the speed of sound).
* Amplitude: The magnitude of the pressure fluctuations, which correlates to the perceived loudness of a sound, typically measured in decibels (dB).

2.1 Sound Propagation, Reflection, and Interaction with Boundaries

When sound waves propagate within an enclosed space, they inevitably encounter boundaries—walls, ceilings, floors, furniture, and even occupants. Upon striking such a boundary, the sound energy undergoes several transformations:

• Reflection: A portion of the sound energy bounces off the surface, returning into the room. The angle of incidence equals the angle of reflection for specular reflections, analogous to light bouncing off a mirror.
• Absorption: A portion of the sound energy is converted into another form of energy, primarily heat, within the boundary material. This reduces the sound’s intensity.
• Transmission: A portion of the sound energy passes through the boundary material to the adjacent space. This is a key concern in soundproofing, distinct from room acoustics but often related.
• Diffraction: Sound waves bend around obstacles or spread out through openings. This phenomenon is more pronounced for longer wavelengths (lower frequencies) and helps sound ‘turn corners’.
• Scattering: When sound waves encounter a rough or irregularly shaped surface, they are dispersed in multiple directions rather than a single coherent reflection. This is the principle behind diffusion.

The acoustic impedance of a material—a measure of its resistance to sound flow—plays a crucial role in determining the proportion of sound energy that is reflected, absorbed, or transmitted. Materials with a high acoustic impedance mismatch with air (e.g., concrete) tend to reflect more sound, while materials with similar impedance (e.g., porous absorbers) tend to absorb more.

2.2 Room Modes and Standing Waves: A Comprehensive Analysis

One of the most significant and challenging phenomena in room acoustics, particularly in smaller enclosed spaces, is the formation of standing waves, commonly known as room modes. These occur when sound waves reflecting off parallel surfaces constructively or destructively interfere with incoming waves at specific frequencies. This interference leads to stationary patterns of pressure maxima (antinodes) and minima (nodes) within the room, resulting in an uneven frequency response: certain frequencies are unnaturally amplified or attenuated at different locations, creating ‘boominess’ or ‘nulls’ (Schroeder, 1962).

Room modes are primarily determined by the room’s dimensions (length, width, height) and are categorized into three fundamental types:

2.2.1 Axial Modes

Axial modes are the simplest and most dominant type, occurring between two opposing parallel surfaces, such as opposite walls, or the floor and ceiling. They are one-dimensional phenomena. The frequencies at which axial modes occur can be calculated using the formula:

$$ f = n \frac{c}{2L} $$

Where:
* f is the modal frequency in Hertz.
* n is an integer (1, 2, 3, …) representing the mode order (e.g., n=1 for the fundamental mode, n=2 for the first overtone).
* c is the speed of sound in air (approximately 343 m/s).
* L is the dimension of the room (length, width, or height) in meters.

For example, in a room 6 meters long, the fundamental axial mode ($n=1$) for the length dimension would be $343 / (2 * 6) \approx 28.6$ Hz. Its overtones would be $57.2$ Hz, $85.8$ Hz, and so on. These modes create significant peaks and dips in the frequency response along the axis of the dimension.

2.2.2 Tangential Modes

Tangential modes involve four surfaces and reflect off two pairs of parallel surfaces. They are two-dimensional, traversing the room diagonally. These modes have half the energy of axial modes but contribute significantly to the overall modal density, particularly at low and mid-low frequencies. Their calculation is more complex, involving combinations of two axial mode formulas.

2.2.3 Oblique Modes

Oblique modes are the most complex, involving all six surfaces of the room. They are three-dimensional, reflecting off three pairs of surfaces. These modes have one-quarter the energy of axial modes but contribute the largest number of modes, especially as frequency increases. Their calculation is the most intricate, combining three axial mode formulas.

2.2.4 Modal Density and the Schroeder Frequency

Understanding modal density—the number of modes per unit bandwidth—is crucial. At very low frequencies, modal density is sparse, meaning individual modes are distinctly audible and problematic. As frequency increases, the modes become more numerous and overlap, leading to a smoother, more diffuse acoustic field.

The Schroeder Frequency (or ‘crossover frequency’) is a theoretical point above which the number of modes becomes sufficiently dense and overlapping that the room’s acoustic behavior can be described statistically, rather than by individual modal analysis. Below this frequency, individual modes dominate and require specific treatment; above it, statistical models like reverberation time become more predictive. The Schroeder frequency ($f_s$) is approximated by the formula:

$$ f_s \approx 2000 \sqrt{\frac{RT_{60}}{V}} $$

Where:
* $RT_{60}$ is the reverberation time in seconds.
* $V$ is the room volume in cubic meters.

Typically, for small-to-medium rooms, the Schroeder frequency falls between 150 Hz and 300 Hz. Below this, room modes are the primary concern; above it, reverberation and reflections dominate (Everest & Pohlmann, 2015).

2.3 Reverberation Time (RT60) and its Perceptual Significance

Reverberation refers to the persistence of sound in an enclosed space after the sound source has stopped. It is caused by the continuous reflections of sound waves off the room’s surfaces. Reverberation Time (RT60) is the most common metric used to quantify this persistence; it is defined as the time it takes for the sound pressure level to decay by 60 decibels (dB) after the direct sound source has ceased (ISO 3382-1, 2009).

2.3.1 Calculation of Reverberation Time

Two primary formulas are used to calculate RT60:

• Sabine’s Formula: Historically significant and widely used for larger, relatively diffuse spaces with evenly distributed absorption.
  $$ RT_{60} = 0.161 \frac{V}{SA} $$
  Where:

  • V is the room volume in cubic meters.
  • S is the total surface area of the room in square meters.
  • A is the total absorption in Sabine units, calculated as the sum of (surface area * absorption coefficient) for all surfaces and objects in the room ($A = \sum_i S_i \alpha_i$).

• Eyring’s Formula: A refinement that provides more accurate results for rooms with higher absorption coefficients (i.e., deader rooms) where sound energy is absorbed more rapidly.
  $$ RT_{60} = 0.161 \frac{V}{-S \ln(1 – \bar{\alpha})} $$
  Where $\bar{\alpha}$ is the average absorption coefficient of the room’s surfaces.

2.3.2 Impact on Auditory Clarity and Intelligibility

RT60 is a critical parameter dictating the clarity and intelligibility of sound within a room. An excessively long reverberation time leads to a ‘muddy’ or ‘boomy’ sound, where successive sounds overlap and speech becomes indistinct. This is typical of large, untreated spaces like gymnasiums or stone cathedrals. Conversely, an insufficient reverberation time results in a ‘dry’ or ‘dead’ sound, lacking natural resonance and ambience, which can feel acoustically uncomfortable, as if sound is immediately absorbed without developing naturally.

The ideal RT60 varies significantly depending on the room’s intended purpose:
* Recording Studios / Control Rooms: Very short RT60 (0.2-0.4 seconds) for accurate, uncolored monitoring.
* Concert Halls: Longer RT60 (1.8-2.5 seconds) to enhance musical richness and envelopment, balancing clarity with warmth.
* Classrooms / Lecture Theatres: Moderate RT60 (0.6-0.8 seconds) to optimize speech intelligibility.
* Offices: Similar to classrooms, aiming for clarity and reduced noise build-up.

2.3.3 Other Decay Metrics

Beyond RT60, other metrics provide a more nuanced understanding of sound decay:
* Early Decay Time (EDT): The time it takes for the initial 10 dB decay of sound, extrapolated to a 60 dB decay. It often correlates better with perceived reverberance.
* T20 and T30: Reverberation times calculated from the decay slope between -5 dB and -25 dB (T20) or -5 dB and -35 dB (T30) relative to the peak sound level. These are used to mitigate the influence of background noise on the full 60 dB decay measurement.

2.4 Early Reflections and Their Role

Early reflections are the first few sound reflections that arrive at the listener’s ears shortly after the direct sound (typically within 50-80 milliseconds). Their impact on sound perception is profound:
* Spatial Perception: Early reflections provide cues about the size and shape of the room, contributing to a sense of spaciousness and envelopment.
* Loudness Enhancement: Reflections arriving within the Haas effect (precedence effect) window (approximately 5-30 ms) are integrated with the direct sound, increasing the perceived loudness without causing distinct echoes.
* Detrimental Effects: If early reflections are too strong, arrive too late, or are unevenly distributed, they can cause issues like:
* Comb Filtering: Occurs when direct sound and its reflections arrive at slightly different times, causing constructive and destructive interference across the frequency spectrum, resulting in a ‘hollow’ or ‘phasiness’ sound. This is particularly problematic near reflective surfaces.
* Flutter Echoes: Rapid, distinct repetitions of sound caused by reflections between two parallel, highly reflective surfaces. They sound like a rapid ‘pinging’ or ‘ringing’.

Proper management of early reflections, often through strategic absorption or diffusion near the listening position, is paramount for achieving a clear, accurate, and spacious soundstage, particularly in critical listening environments.

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

3. Comprehensive Acoustic Treatment Strategies and Material Science

Acoustic treatment aims to control how sound energy behaves within a space by altering surface properties. The primary tools for this are absorbers, diffusers, and, in specific cases, resonant structures. Each serves a distinct function and is selected based on the specific acoustic issues being addressed.

3.1 Sound Absorption Principles and Absorber Types

Sound absorption is the process by which a material, structure, or object takes in sound energy, as opposed to reflecting it. The primary mechanism involves converting the kinetic energy of sound waves into thermal energy through friction or other dissipative processes.

3.1.1 Porous Absorbers (Velocity-based)

These are the most common type of absorber, working primarily by allowing sound waves to penetrate their surface and oscillate the air molecules within their porous structure. The friction between the moving air and the fibers or pores of the material converts sound energy into heat. They are velocity-based absorbers because they are most effective where the air particle velocity is highest (e.g., in the middle of a room or 1/4 wavelength from a wall).

• Materials:

  • Mineral Wool / Rockwool: High-density, fibrous materials (e.g., 45-60 kg/m³) are highly effective, non-combustible, and cost-effective. Commonly used in panels and bass traps. Examples include Roxul (Rockwool) Safe’n’Sound or Owens Corning 703.
  • Fiberglass: Similar to mineral wool, available in rigid boards (e.g., Owens Corning 703 or 705) or batts. Excellent broadband absorption, particularly when thick.
  • Polyester Fiber: Increasingly popular due to being non-irritating, environmentally friendly (often from recycled plastics), and mold-resistant. Performance is comparable to mineral wool/fiberglass at similar densities.
  • Open-Cell Foam: Acoustic foam (e.g., melamine foam, polyurethane foam) is lightweight and relatively easy to install. However, its effectiveness typically diminishes at lower frequencies unless very thick. Often less effective than mineral wool/fiberglass for broadband absorption at comparable thicknesses.

• Mechanism and Performance:

  • Thickness: The primary determinant of a porous absorber’s low-frequency effectiveness. Thicker panels absorb lower frequencies more efficiently because the sound wave penetrates deeper into the material, allowing more interaction and energy conversion. A general rule of thumb is that a porous absorber is effective down to frequencies where its thickness is at least 1/4 of the wavelength. For instance, a 100 Hz wave has a wavelength of 3.43 meters, so a 0.85-meter thick absorber would be needed for optimal absorption at 100 Hz if placed directly on a wall. This is why air gaps are crucial.
  • Density and Flow Resistivity: These properties influence how much air friction occurs. Optimal flow resistivity allows sound waves to enter the material without excessive reflection while providing enough resistance for energy conversion. Too low a density allows sound to pass through unattenuated; too high a density causes sound to reflect.
  • Mounting: Mounting porous absorbers with an air gap behind them significantly improves their low-frequency performance. An air gap effectively increases the total depth available for absorption, moving the velocity maxima of longer wavelengths into the material. For example, a 50mm panel with a 50mm air gap can perform as well as a 100mm panel mounted flush at lower frequencies.

3.1.2 Resonant Absorbers (Pressure-based)

Resonant absorbers are designed to target specific, often problematic, low frequencies. They work on the principle of resonance, where a mass-spring system absorbs sound energy most effectively at its resonant frequency. They are pressure-based absorbers, meaning they are most effective at locations where sound pressure is highest (e.g., corners or flush against a wall).

• Helmholtz Resonators:

  • Principle: A classic Helmholtz resonator consists of a volume of air (the cavity) connected to the outside air by a small opening (the neck). When sound waves at the resonator’s specific resonant frequency strike the opening, the air in the neck oscillates, creating friction with the cavity air. This system acts as a mass-spring resonator, with the air in the neck being the mass and the air in the cavity being the spring. The sound energy is converted into heat (Davis & Patronis, 2011).
  • Tuning: The resonant frequency is inversely proportional to the square root of the volume of the cavity and directly proportional to the neck’s area and inversely proportional to its length. This allows for precise tuning to address problematic modal frequencies.
    $$ f_r \approx \frac{c}{2\pi} \sqrt{\frac{A}{V_c L_e}} $$
    Where:
  • $f_r$ is the resonant frequency.
  • $c$ is the speed of sound.
  • $A$ is the neck area.
  • $V_c$ is the cavity volume.
  • $L_e$ is the effective length of the neck.
  • Types: Bottle-type, perforated panel (an array of small Helmholtz resonators), slat resonators (slots instead of holes).
  • Applications: Highly effective for targeting narrow-band low-frequency issues like prominent room modes. Often combined with internal porous material for broader absorption.

• Membrane (Diaphragmatic) Absorbers:

  • Principle: A sealed box with a flexible membrane (e.g., plywood, plasterboard, vinyl, or specialized acoustic fabric) stretched across one side, creating an air cavity behind it. When low-frequency sound waves strike the membrane, it vibrates, converting sound energy into heat, especially when damped internally with porous material.
  • Tuning: The resonant frequency is determined by the mass per unit area of the membrane, the stiffness of the air spring in the cavity, and the depth of the cavity. Lighter, looser membranes and deeper cavities generally tune to lower frequencies.
  • Applications: Excellent for absorbing low-mid to low frequencies (e.g., 50 Hz to 200 Hz), making them ideal for bass trapping where broad low-frequency control is needed. They can be built into walls or as standalone units.

3.1.3 Absorption Coefficients and Ratings

• Absorption Coefficient (α): A dimensionless value between 0 (perfect reflection) and 1 (perfect absorption) that indicates the proportion of sound energy absorbed by a material at a specific frequency (e.g., 125 Hz, 250 Hz, 500 Hz, 1000 Hz, 2000 Hz, 4000 Hz). These values are determined through standardized testing (e.g., ASTM C423, ISO 354).
• Noise Reduction Coefficient (NRC): A single-number rating that represents the arithmetic average of the absorption coefficients at 250 Hz, 500 Hz, 1000 Hz, and 2000 Hz. It provides a quick, but somewhat generalized, indication of a material’s overall sound absorption capability.
• Sound Absorption Average (SAA): Similar to NRC but averages absorption coefficients across 12 one-third octave bands from 200 Hz to 2500 Hz, providing a slightly more accurate broadband rating than NRC.

3.2 Sound Diffusion Principles and Diffuser Technologies

Unlike absorbers that remove sound energy, diffusers redistribute it. They scatter sound waves in multiple directions, reducing the coherence of reflections and preventing the formation of strong specular reflections, flutter echoes, and comb filtering. The goal is to create a more uniform sound field, enhancing spatial perception, improving stereo imaging, and making the room sound larger and more natural (Schroeder, 1975).

3.2.1 Principles of Diffusion

Diffusion occurs when sound waves encounter a surface with significant variations in depth or impedance that are comparable to the wavelength of the sound. This causes the reflected energy to spread out evenly in time and space, reducing the ‘focusing’ of sound. Diffusers are particularly effective at higher frequencies where absorption might make a room sound ‘dead’ and where specular reflections become more noticeable.

3.2.2 Types of Diffusers

• Quadratic Residue Diffusers (QRDs):

  • Design: Pioneered by Manfred R. Schroeder in the 1970s, QRDs are based on mathematical number sequences (specifically, quadratic residue sequences) to define the depths of an array of wells. These wells cause incident sound waves to reflect with different phase shifts, leading to wide-angle, uniform diffusion.
  • Mechanism: The well depths are calculated such that reflections from different wells combine out of phase, spreading the sound energy over a wider angle. The prime number used in the sequence determines the number of wells per period and influences performance.
  • Frequency Range: A QRD’s effective diffusion range is determined by its deepest well (lowest effective frequency) and its smallest step size between wells (highest effective frequency). Generally, they work well for mid to high frequencies.
  • Applications: Ideal for rear walls in control rooms, mastering studios, and listening rooms to break up reflections and enhance the sense of spaciousness without excessive absorption.

• Primitive Root Diffusers (PRDs):

  • Design: Another class of diffusers also derived from number theory, specifically primitive root sequences. They are similar in concept to QRDs but can sometimes offer a more uniform diffusion characteristic over a broader angle for specific design parameters.
  • Applications: Similar to QRDs, often used where precise and wide-angle diffusion is critical.

• Binary Amplitude Diffusers (BADs) / Reflection Phase Gratings:

  • Design: Simpler designs that involve two distinct depths or materials (e.g., reflective and absorptive patches) arranged in a binary sequence. While not true diffusers in the same sense as QRDs (which scatter sound over a hemisphere), they can effectively break up flutter echoes and reduce strong specular reflections by causing phase cancellations.
  • Applications: Useful for smaller rooms or where budget/complexity constraints are a factor.

• Geometric Diffusers (Polycylindrical / Convex Diffusers):

  • Design: These are simpler, shape-based diffusers, often made from curved panels (e.g., wood or fiberglass). They are broadband diffusers, scattering sound purely based on their convex shape.
  • Mechanism: Sound waves hitting the curved surface are reflected at various angles depending on where they strike the curve.
  • Applications: Effective for creating a general sense of diffuse sound field. Less precise in their scattering pattern than QRDs but simpler to design and implement. Often used on ceilings or side walls.

3.2.3 Hybrid Solutions

Many modern acoustic treatments combine absorption and diffusion properties into single panels, often known as ‘diffsorbers’ or ‘absorbiffusers’. These panels can absorb specific frequencies (typically low to mid) while diffusing others (mid to high), offering a versatile solution for complex acoustic environments.

3.3 Sound Barriers and Isolation (Brief Overview)

While the core focus of this report is room acoustics (controlling sound within a space), it is important to briefly distinguish it from soundproofing or sound isolation (controlling sound between spaces). Soundproofing typically involves:
* Mass: Heavier, denser materials block more sound (Mass Law).
* Damping: Viscoelastic materials between layers dissipate vibrational energy.
* Decoupling: Creating air gaps and using resilient mounts to separate structures, preventing sound transmission through vibration (Mass-Spring-Mass system).
* Sealing: Eliminating air leaks through gaps, cracks, and poorly sealed doors/windows.

These principles are crucial for preventing external noise from entering a critical listening environment or preventing internal sound from disturbing adjacent spaces, but they do not directly optimize the internal acoustics of a room in the way absorbers and diffusers do.

3.4 Bass Traps

Bass traps are a specific application of acoustic absorption, designed to target problematic low frequencies (typically below 300 Hz). Because low frequencies have very long wavelengths, conventional thin porous panels are ineffective. Bass traps achieve low-frequency absorption through:
* Thick Porous Absorbers: Extremely thick panels of mineral wool or fiberglass (e.g., 200mm to 600mm or more) are highly effective broadband bass traps, particularly when placed in corners where pressure maxima of multiple modes often converge.
* Resonant Absorbers: Helmholtz resonators and membrane absorbers (as discussed in 3.1.2) are highly effective as tuned bass traps, targeting specific problematic modal frequencies.

Their strategic placement, especially in room corners (tri-corners and wall-wall corners), is critical because this is where pressure maxima for axial, tangential, and oblique modes frequently coincide, leading to the most pronounced low-frequency issues (Garrison, 2011).

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

4. Advanced Diagnostic and Remedial Methodologies

Effective acoustic treatment is rarely achieved through guesswork. It relies on precise measurement, sophisticated analysis, and, increasingly, computational modeling and active systems.

4.1 Comprehensive Acoustic Measurement and Analysis

The foundation of effective acoustic remediation is accurate diagnosis. This requires specialized measurement tools and software to quantify a room’s acoustic characteristics.

4.1.1 Key Acoustic Measurement Techniques

• Impulse Response (IR): This is the ‘acoustic fingerprint’ of a room. It captures how a room responds to a very short, sharp sound (an impulse, such as a clap or a balloon pop, though typically a sine sweep or maximum length sequence (MLS) signal is used in controlled environments). The IR contains all the information about the room’s acoustics: direct sound, early reflections, and the reverberant tail. From the IR, virtually all other acoustic metrics can be derived.
• Frequency Response (FR): Measured by sweeping a sine wave or using pink noise, the FR graph shows the sound pressure level across the audible frequency spectrum at a given listening position. Peaks and dips in the FR are indicative of room modes, comb filtering, and uneven absorption/reflection.
• Reverberation Time (RT60, EDT, T20, T30): As discussed, these metrics quantify sound decay. They are measured by analyzing the impulse response or direct decay of a loud sound, typically averaged over multiple measurement points.
• Spectrograms / Waterfall Plots: These three-dimensional graphs (frequency vs. amplitude vs. time) are derived from the impulse response. They visually represent how sound energy decays over time across different frequencies, making it easy to identify problematic resonant frequencies (ringing modes) that decay slowly.
• Energy Time Curve (ETC): A two-dimensional plot (amplitude vs. time) also derived from the impulse response. The ETC clearly shows the arrival times and amplitudes of the direct sound, early reflections, and later reverberation. It is invaluable for identifying specific reflections that cause comb filtering or flutter echoes.

4.1.2 Acoustic Software Tools

• Room EQ Wizard (REW): A powerful, free, and widely used software for acoustic measurement and analysis. REW can perform impulse response measurements, generate frequency response graphs, waterfall plots, ETCs, RT60 calculations, and even assist with loudspeaker and subwoofer optimization. It works with a calibrated measurement microphone and an audio interface.
• Dirac Live / AcourateDRC: These are examples of Digital Room Correction (DRC) software. They use measured impulse responses to create digital filters that compensate for acoustic anomalies introduced by the room and loudspeakers. While highly effective at correcting frequency response irregularities and some phase issues, they are primarily electronic solutions and do not replace physical acoustic treatment for fundamental issues like excessive reverberation or strong modal ringing (Poletti, 2008).
• Professional Acoustic Modeling Software: For more complex architectural projects and precise predictions, software packages like ODEON, EASE (Enhanced Acoustic Simulator for Engineers), and CATT-Acoustic are used. These tools allow engineers to model room geometries, material properties, and source/receiver positions, providing detailed simulations of acoustic parameters before construction or renovation.

4.1.3 Measurement Microphones

Accurate measurements require a high-quality, omni-directional measurement microphone (e.g., Behringer ECM8000, MiniDSP UMIK-1, Earthworks M30) with a flat frequency response across the audible spectrum. These microphones are typically calibrated to ensure accurate SPL readings.

4.2 Computational Acoustic Modeling and Simulation

Advanced acoustic design often precedes physical construction through the use of computational modeling. These simulations allow engineers and designers to predict a room’s acoustic behavior and optimize treatment strategies virtually, saving significant time and resources.

4.2.1 Simulation Techniques

• Ray Tracing: Simulates sound propagation by treating sound as discrete rays that bounce off surfaces. Each ray carries energy and time information. Effective for predicting reverberation time and later reflections, particularly at higher frequencies where reflections behave geometrically. Less accurate for low-frequency modal behavior.
• Image Source Method: A precise method for calculating early reflections. It creates virtual sound sources (image sources) that are mirror images of the real source, reflecting off room surfaces. This method is exact for specular reflections but computationally intensive for complex geometries and numerous reflections.
• Finite Element Method (FEM) / Boundary Element Method (BEM): These are numerical methods that discretize the entire acoustic domain (FEM) or its boundaries (BEM) into small elements. They solve the wave equation directly, offering highly accurate predictions for low-frequency behavior and complex geometries, including coupling between structural vibrations and acoustics. However, they are computationally very expensive, limiting their practical use to smaller volumes or specific frequency ranges.
• Statistical Acoustics: Relies on average acoustic properties (like total absorption) and is suitable for large, diffuse rooms where individual reflections are not significant. Sabine and Eyring formulas are based on statistical acoustics.

4.2.2 Benefits of Simulation

• Predictive Analysis: Allows for the prediction of RT60, spatial decay, intelligibility metrics, and frequency response before any physical changes are made.
• Optimization: Enables designers to optimize the placement, type, and quantity of acoustic treatments for desired outcomes.
• Cost-Effectiveness: Reduces the need for trial-and-error physical implementations, saving material and labor costs.
• Visualization: Provides visual representations (e.g., sound pressure maps, ray diagrams) that help communicate acoustic concepts to clients and stakeholders.

4.3 Adaptive and Active Acoustic Treatment Systems

While passive acoustic treatments (absorbers, diffusers) are static, active acoustic systems offer dynamic, real-time control over a room’s acoustic environment. These systems use electro-acoustic means to modify sound fields.

• Principle: Typically involve an array of microphones capturing the room’s sound, digital signal processors (DSPs) manipulating the captured sound, and an array of loudspeakers reintroducing the modified sound into the space.
• Lexicon Acoustic Reinforcement and Enhancement System (LARES): One of the pioneering and well-known active acoustic systems. LARES uses multiple microphones strategically placed in the room to pick up ambient sound, processes it digitally, and then outputs it through an array of loudspeakers distributed around the room. By precisely controlling delays, levels, and equalization, LARES can simulate different room sizes and surface properties, effectively changing the perceived reverberation time, envelopment, and even sound directionality in real-time. This makes it ideal for multi-purpose venues that need to quickly adapt their acoustics for different events (e.g., concert, lecture, theatre play) (LARES, n.d.).
• Active Noise Cancellation (ANC): While not a room acoustic treatment in the sense of modifying reverberation, ANC is an active system that uses destructive interference to reduce specific unwanted noise. Microphones detect noise, a DSP generates an anti-phase sound wave, and loudspeakers emit this anti-noise to cancel the original sound. Primarily effective for low-frequency, continuous noise. It is distinct from active room acoustic systems that aim to enhance or modify the overall sound field.
• Future Trends: Research continues into advanced active systems, including those based on acoustic metamaterials (artificial structures engineered to exhibit extraordinary acoustic properties not found in nature) and smart acoustic surfaces that can dynamically change their absorption or diffusion characteristics in response to environmental conditions or user input (Chen et al., 2016; Lyu et al., 2023; Zhou et al., 2022).

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

5. The Interplay of Room Acoustics and Perceptual Quality

The ultimate goal of mastering room acoustics is to optimize the listening experience. The complex interactions of sound waves within a room profoundly affect how we perceive sound, impacting clarity, spatial imaging, emotional response, and listener fatigue.

5.1 Impact of Room Modes on Sonic Accuracy and Image

Room modes are particularly insidious because they manifest as severe, non-linear peaks and dips in the low-frequency response, often leading to a disproportionate and inaccurate bass rendition. This can result in:
* ‘One-Note Bass’: Where specific bass notes are unnaturally emphasized, overshadowing others, leading to a loss of clarity and detail in the low end. This makes it difficult to discern individual bass lines or kick drum notes.
* ‘Boominess’ and ‘Muddy’ Sound: An overall impression of excessive bass energy that lacks definition, making the entire mix sound unclear and congested.
* Spatial Inconsistencies: Because pressure nodes and antinodes vary significantly with position, the bass response can change dramatically as a listener moves even slightly within the room. This makes consistent monitoring challenging.
* Misleading Mixing/Mastering Decisions: In a control room plagued by modes, an audio engineer might mistakenly cut or boost frequencies to compensate for the room’s anomalies, leading to mixes that sound unbalanced when played in a different, well-treated environment.

Mitigation strategies for modes include: strategic placement of listening position and loudspeakers to minimize excitation of modes or to place the listener in a more neutral modal zone; and, most importantly, the strategic deployment of targeted low-frequency absorption (bass traps), particularly resonant absorbers or very thick porous absorbers in corners where multiple modes converge.

5.2 Reverberation Time and its Influence on Clarity and Immersion

As discussed, RT60 directly impacts the clarity and intelligibility of sound. However, its influence extends beyond mere audibility:
* Speech Intelligibility Index (STI): A quantitative measure of speech intelligibility, highly correlated with RT60. High RT60 values severely degrade STI, making it difficult to understand spoken word. This is critical in classrooms, conference rooms, and call centers.
* Musical Articulation and Envelopment: For music, an optimal RT60 allows for the natural decay of notes, preserving their articulation while providing a sense of space and ‘envelopment’ – the feeling of being immersed in the sound field. Too short an RT60 can make music sound ‘dry,’ ‘sterile,’ and unnatural, while too long an RT60 can blur fast musical passages and reduce instrumental separation.
* Psychoacoustic Implications: The reverberant field contributes significantly to the perceived ‘liveness’ or ‘deadness’ of a space, influencing emotional response and comfort. A well-controlled reverberation time creates a pleasant and acoustically comfortable environment, reducing listener fatigue.
* Critical Distance: In a reverberant room, the critical distance is the point where the direct sound level equals the reverberant sound level. Beyond this point, the reverberant field dominates, making speech intelligibility poor and sound localization difficult. Acoustic treatment aims to extend the critical distance, particularly in spaces relying on direct sound (e.g., lecture halls).

Achieving the ideal RT60 involves a careful balance of absorptive materials, distributed appropriately to achieve a relatively even decay across the frequency spectrum.

5.3 Early Reflections, Comb Filtering, and Stereo Imaging

Early reflections, if uncontrolled, can be highly detrimental to the stereo image and tonal accuracy:
* Comb Filtering: Strong early reflections arriving slightly out of phase with the direct sound cause destructive interference at specific frequencies and constructive interference at others. This creates a jagged frequency response (the ‘comb’ effect), leading to a ‘hollow,’ ‘nasal,’ or ‘phasiness’ sound that changes with head position. This is particularly problematic for reflections off side walls, ceilings, and even console surfaces near the listening position.
* Degraded Stereo Imaging and Localization: Early reflections confuse the brain’s ability to localize sound sources. Instead of a precise soundstage, the image can become smeared, indistinct, or unnaturally wide. Reflections from asymmetrical surfaces can pull the perceived sound image off-center.
* The ‘Reflection-Free Zone’ (RFZ): In critical listening environments (control rooms, mastering studios), the goal is often to create a ‘reflection-free zone’ around the listening position. This involves strategically placing absorption on the first reflection points (side walls, ceiling) to eliminate early reflections within the precedence effect window (typically the first 15-20ms after the direct sound). This ensures that the direct sound dominates, allowing for accurate tonal balance and precise stereo imaging (Everest & Pohlmann, 2015).

5.4 Diffusion vs. Absorption in Different Zones

The strategic application of absorption and diffusion is key to optimizing a room’s acoustics:
* Front of Room (behind speakers, first reflection points): Often best served by absorption to control early reflections and prevent comb filtering, creating a clear and accurate direct sound field.
* Side Walls (beyond first reflection points) and Ceiling: Can benefit from a mix of absorption and diffusion to control later reflections and improve spatial uniformity without making the room sound overly dead.
* Rear Wall: A prime location for diffusion, especially in critical listening rooms. Diffusion here helps to break up strong rear wall reflections that can blur the soundstage, providing a sense of spaciousness without returning coherent echoes to the listening position. Alternatively, significant absorption can be used if a very ‘tight’ and controlled decay is desired.
* Corners: Essential for bass trapping due to the convergence of modal pressure maxima.

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

6. Conclusion

Mastering room acoustics is an intricate yet profoundly rewarding endeavor that extends far beyond simplistic application of acoustic panels. It necessitates a deep, interdisciplinary understanding of the fundamental principles of sound wave behavior, the unique characteristics of various room geometries, and the sophisticated interplay between diverse acoustic treatment methodologies. From the nuanced physics of sound propagation and the pervasive influence of room modes to the critical role of reverberation time and the subtle impact of early reflections, each element contributes significantly to the overall auditory experience.

By employing advanced diagnostic techniques, such as comprehensive acoustic measurements (Impulse Response, Waterfall Plots, ETCs), sophisticated computational modeling and simulation, and in select cases, dynamic active acoustic systems, professionals can precisely identify and quantify acoustic anomalies. This detailed understanding then informs the strategic deployment of a tailored combination of broadband absorbers, precisely tuned resonators, and carefully designed diffusers. The judicious application of these tools allows for the creation of acoustically optimized environments that not only enhance speech intelligibility and musical fidelity but also foster a sense of comfort, envelopment, and precise spatial imaging.

As research in psychoacoustics, material science, and computational acoustics continues to advance, new insights and innovative solutions—such as those involving acoustic metamaterials and smart adaptive surfaces—are continuously emerging, promising even greater control and customization of our acoustic spaces. The journey towards mastering room acoustics is ongoing, demanding continuous learning and a meticulous, scientific approach to truly transform enclosed spaces into acoustically superlative environments.

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

References

• Beranek, L. L. (1996). Concert Halls and Opera Houses: Music, Acoustics, and Architecture. Springer.
• Chen, Y., Zhao, S., Wu, S., & Zhang, Y. (2016). Ultrathin Metamaterial for Perfect and Omnidirectional Sound Absorption. arXiv preprint arXiv:1606.07776. Retrieved from https://arxiv.org/abs/1606.07776
• Davis, D., & Patronis, E. (2011). Sound System Engineering (4th ed.). Focal Press.
• Everest, F. A., & Pohlmann, K. C. (2015). Master Handbook of Acoustics (6th ed.). McGraw-Hill Education.
• Garrison, M. (2011). Acoustics 102 – Treating Your Studio. The Broadcasters Desktop Resource. Retrieved from https://www.thebdr.net/acoustics-102-treating-your-studio/
• International Organization for Standardization. (2009). ISO 3382-1: Acoustics – Measurement of room acoustic parameters – Part 1: Performance spaces. ISO.
• LARES. (n.d.). LARES Systems. Retrieved from https://lexicon-lares.com/ (Note: Original source was Wikipedia, but linking to the official product site for detail).
• Lyu, X., Cao, J., & Zhang, G. (2023). Reverberation Time Control by Acoustic Metamaterials in a Small Room. arXiv preprint arXiv:2308.10476. Retrieved from https://arxiv.org/abs/2308.10476
• Poletti, M. (2008). Theory of digital room correction. Journal of the Audio Engineering Society, 56(11), 935-950.
• Room Acoustics. (n.d.). In Wikipedia. Retrieved from https://en.wikipedia.org/wiki/Room_acoustics
• Russell, D. A. (2018). Physics of Musical Instruments (Lecture Notes). Pennsylvania State University. Retrieved from http://www.acs.psu.edu/drussell/lectures/PhysInstruments.html
• Schroeder, M. R. (1962). Frequency-response curves of rooms and the diffusion of sound by walls. Journal of the Acoustical Society of America, 34(7), 902-909.
• Schroeder, M. R. (1975). Diffuse Sound Reflection by Maximum-Length Sequences. Journal of the Acoustical Society of America, 57(S1), S19-S19.
• Soundproofing. (n.d.). In Wikipedia. Retrieved from https://en.wikipedia.org/wiki/Soundproofing
• Zhou, Y., Chen, W., Liu, T., & Jin, D. (2022). Ultrabroadband Sound Control with Deep-Subwavelength Plasmacoustic Metalayers. arXiv preprint arXiv:2209.13673. Retrieved from https://arxiv.org/abs/2209.13673
