Comprehensive Analysis of Structural Issues in Buildings: Identification, Diagnosis, Remediation, Legal Implications, and Selection of Qualified Professionals

Abstract

Structural integrity is the bedrock of building safety, functionality, and long-term value. Degradation or failure of structural elements can precipitate a cascade of detrimental effects, ranging from minor aesthetic blemishes to catastrophic collapse, invariably leading to substantial financial burdens and potential safety hazards. This comprehensive report undertakes an in-depth exploration of the multifaceted domain of structural issues in buildings. It systematically examines prevalent structural pathologies, delves into sophisticated diagnostic methodologies, details an array of remediation techniques and their associated cost implications, navigates the intricate landscape of legal considerations and disclosure mandates, and provides robust guidelines for the discerning selection of proficient structural engineers and contractors. Drawing upon established research, contemporary industry best practices, and a synthesis of expert knowledge, this report aims to furnish property owners, facility managers, construction professionals, and legal practitioners with a profound understanding and actionable insights necessary for the proactive identification, effective assessment, and judicious management of structural challenges, thereby safeguarding asset value and occupant safety.

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

1. Introduction

The enduring stability and operational efficacy of any constructed edifice are inextricably linked to the soundness of its underlying structure. A building’s structural framework is its skeleton, providing support, resisting loads, and defining its resilience against environmental forces and the passage of time. When this critical framework is compromised, the consequences extend far beyond mere cosmetic imperfections. Unaddressed structural anomalies can culminate in grave safety hazards, precipitous depreciation in property valuation, and the imposition of exigent, often prohibitively expensive, repair expenditures. The imperative to understand, identify, and rectify structural deficiencies is therefore paramount for ensuring the longevity of built assets and the well-being of their inhabitants. This report endeavors to dissect the myriad dimensions of structural problems, offering an exhaustive and authoritative compendium designed to empower professionals across the construction and property management sectors with the requisite knowledge to adeptly address and preempt these formidable challenges.

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

2. Common Structural Issues

Structural issues manifest in diverse forms, each presenting distinct challenges and requiring specific diagnostic and remedial approaches. Recognition of these common indicators is the first critical step in mitigating potential risks.

2.1 Cracks in Walls, Ceilings, and Foundations

Cracks represent one of the most ubiquitous and often unsettling indicators of potential structural distress, frequently serving as visible symptoms of underlying problems. Their presence, morphology, location, and propagation patterns can offer invaluable clues regarding the nature and severity of structural movement or material degradation. It is crucial to differentiate between cosmetic, non-structural cracks and those indicative of significant structural compromise.

2.1.1 Types of Cracks and Their Implications

• Hairline Cracks: Typically less than 1 mm wide, these are often superficial and non-structural, resulting from minor material shrinkage, thermal expansion/contraction, or plaster drying. They usually do not propagate through the full thickness of a structural element and rarely pose a safety concern.
• Vertical Cracks: Predominantly vertical cracks, particularly those less than 3 mm wide, can arise from minor settlement of foundations or differential thermal expansion/contraction within a wall panel. While they warrant monitoring, they are often less critical than horizontal or diagonal cracks if isolated and non-propagating. In concrete, vertical cracks can also indicate drying shrinkage or minor flexural stresses.
• Horizontal Cracks: The presence of horizontal cracks, especially in masonry walls, is frequently a serious indicator. These can signify significant differential settlement, lateral movement of foundations, or bowing of walls due to expansive forces (e.g., frost heave, sulphate attack, or a lack of lateral restraint). In concrete beams or slabs, horizontal cracks may indicate delamination, rebar corrosion, or shear distress.
• Diagonal/Stepped Cracks: These cracks, particularly prevalent in brickwork or blockwork, typically follow mortar joints and are strong indicators of differential settlement or subsidence. The direction of the crack can often point towards the area of greatest settlement; for instance, cracks widening towards the bottom often suggest settlement directly below the crack. They can also indicate shear forces or racking due to lateral loads or foundation movement.
• Cracks at Openings (Doors/Windows): Cracks radiating from the corners of door and window openings are very common. If they are vertical or diagonal and relatively minor, they might be due to stress concentrations around the opening or minor frame movement. However, if they are wide, propagating significantly, or accompanied by distorted frames, they can be indicative of underlying structural movement or insufficient lintel/header support.
• Bulging or Bowing: While not a crack, this is often accompanied by horizontal or diagonal cracking. It signifies lateral instability, often due to inadequate lateral support, expansive soil pressures, or moisture ingress causing material expansion. This is a severe structural issue requiring immediate attention.

2.1.2 Causes of Cracking

Cracks are symptomatic of forces exceeding a material’s capacity or indicating significant movement within the structure. Key contributors include:

• Foundation Settlement: This is perhaps the most significant cause of structural cracking. When a building’s foundation settles unevenly, differential stresses are induced in the superstructure. This can be due to poor soil compaction, changes in soil moisture content (shrink-swell clays), inadequate bearing capacity of the soil, or nearby excavation activities. Uneven settlement creates shear and tensile forces that masonry and concrete are not designed to resist, leading to distinctive diagonal or horizontal cracks (buildritesydney.com.au).
• Thermal Expansion and Contraction: Building materials expand when heated and contract when cooled. Inadequate provision for movement joints or significant temperature fluctuations can lead to stress build-up and cracking, particularly in long walls or large concrete slabs.
• Material Fatigue and Shrinkage: Concrete, mortar, and plaster undergo shrinkage as they dry and cure. If this shrinkage is restrained or excessive, it can lead to cracking. Long-term cyclical loading can also cause material fatigue, leading to crack initiation and propagation over time.
• Overloading: Applying loads beyond a structural element’s design capacity can induce stresses that cause cracking, often propagating through the element’s weakest points.
• Design or Construction Deficiencies: Inadequate reinforcement, incorrect concrete mix, poor construction practices, or omission of necessary expansion joints can predispose a structure to cracking.
• Vibrations: Prolonged exposure to vibrations from heavy traffic, construction, or machinery can contribute to crack formation and propagation.

Timely and accurate assessment by a qualified structural engineer is paramount to determine the root cause and appropriate remediation strategy for any significant cracking.

2.2 Water Damage and Dampness

Water is arguably the most insidious agent of deterioration for buildings, capable of undermining structural integrity through various mechanisms. Persistent water intrusion leads to dampness, fostering conditions conducive to mold growth, material degradation, and ultimately, structural compromise (buildritesydney.com.au).

2.2.1 Sources of Water Intrusion

• Leaking Roofs: Damaged shingles, cracked tiles, faulty flashing, blocked gutters, or deteriorated membranes allow rainwater to penetrate the roof structure, leading to rot in timber elements (rafters, joists) and ceiling damage.
• Faulty Plumbing: Leaks from pipes, fittings, or drainage systems within walls, floors, or ceilings can silently saturate surrounding materials, causing localized dampness, mold, and rot.
• Inadequate Drainage Systems: Poor external drainage, such as clogged downspouts, improperly sloped grading, or insufficient perimeter drains, can lead to water pooling around the foundation. This increases hydrostatic pressure against basement walls and allows water to seep into sub-structures.
• Rising Damp: Capillary action can draw moisture from the ground upwards through porous building materials (e.g., masonry walls) if a damp-proof course (DPC) is absent, bridged, or defective. This introduces salts and moisture that can lead to plaster degradation, efflorescence, and timber rot.
• Condensation: Inadequate ventilation combined with high internal humidity can lead to condensation on cold surfaces (walls, windows, ceilings), promoting surface mold and, in severe cases, penetrating permeable materials.
• Lateral Damp Penetration: Rainwater driven by wind can penetrate porous exterior walls, especially if rendering is cracked, brickwork is permeable, or pointing is defective.

2.2.2 Mechanisms of Damage

• Timber Rot (Wet Rot and Dry Rot): Persistent dampness creates an ideal environment for wood-decaying fungi. Wet rot typically occurs where timber remains consistently wet (e.g., due to plumbing leaks) and leads to localized decay. Dry rot (Serpula lacrymans), though requiring moisture to initiate, can spread rapidly through dry timber, across non-timber materials, and behind plaster, causing widespread structural weakening and a characteristic ‘cuboidal’ cracking of the timber. Both types significantly reduce the load-bearing capacity of timber joists, beams, and floorboards.
• Corrosion of Metals: Moisture, especially when combined with chlorides or other corrosive agents, accelerates the corrosion of steel reinforcements (rebar), steel beams, and connecting plates. Rust expands to several times the volume of the original steel, causing internal stresses that can spall concrete or masonry, reduce effective steel cross-section, and compromise structural integrity (see Section 2.4).
• Spalling and Deterioration of Masonry/Concrete: Freeze-thaw cycles can cause water absorbed into porous concrete or masonry to expand when frozen, leading to surface spalling and gradual disintegration. Efflorescence (white salt deposits) indicates moisture movement and can lead to surface damage. In concrete, moisture can also contribute to alkali-aggregate reactions (AAR) or sulphate attack, leading to expansion, cracking, and loss of strength.
• Weakening of Adhesives and Mortar: Prolonged exposure to moisture can degrade adhesives used in engineered wood products (e.g., plywood delamination) and weaken mortar joints in masonry, reducing the overall stability of wall systems.

Addressing water ingress requires a multifaceted approach, from source identification to implementing comprehensive waterproofing and drainage solutions.

2.3 Foundation Settlement and Subsidence

Foundation settlement refers to the downward movement of a building’s foundation, either uniformly or differentially. Subsidence is a specific form of settlement caused by the collapse or downward movement of the ground beneath the foundation. Uneven settlement, termed differential settlement, is particularly problematic as it induces severe stresses and strains in the superstructure, leading to tilting, cracking, and pervasive structural instability (newcastlestructuralengineers.com.au).

2.3.1 Causes of Foundation Issues

The complex interaction between soil, water, and building loads dictates the behavior of a foundation. Key contributing factors include:

• Soil Composition and Properties:
  • Expansive Clays: These soils swell significantly when wet and shrink when dry. Seasonal moisture fluctuations or localized leaks can cause differential movement, leading to ‘heave’ (upward movement) or ‘settlement’ (downward movement), imposing considerable stress on foundations.
  • Compressible Soils: Peat, loose sands, and unconsolidated fill materials are prone to significant consolidation and settlement under load. If compaction is uneven during construction, differential settlement is likely.
  • Soluble Soils (Karst Topography): Limestone or gypsum bedrock can dissolve over time, forming voids and sinkholes that lead to sudden and severe subsidence.
• Water Table Fluctuations: A fluctuating water table can significantly impact soil bearing capacity. A rising water table can reduce the effective stress in granular soils, leading to settlement. Conversely, a falling water table can cause consolidation in cohesive soils and increase the risk of ground shrinkage.
• Inadequate Site Preparation/Compaction: If the ground beneath a foundation is not properly prepared, cleared of organic matter, and compacted to an adequate density before construction, it will consolidate unevenly under the building’s weight, leading to differential settlement.
• Nearby Excavations and Construction: Deep excavations for new basements, utility lines, or adjacent building construction can remove lateral support from existing foundations, causing ground movement and settlement. Pile driving or heavy vibratory compaction nearby can also induce settlement.
• Tree Roots: Large trees planted too close to a foundation can extract significant amounts of moisture from the soil, causing localized drying and shrinkage, particularly in clay soils. This phenomenon, known as ‘clay desiccation,’ can lead to substantial differential settlement.
• Plumbing Leaks: Leaking underground pipes or drains can saturate localized areas of the soil, reducing its bearing capacity and washing away fine particles, leading to ‘piping’ or ‘void formation’ and subsequent settlement.
• Erosion: Surface water runoff or underground water flow can erode soil beneath foundations, creating voids that lead to settlement.

2.3.2 Signs of Foundation Distress

Beyond visible cracks, signs of foundation issues include:

• Sticking Doors and Windows: Frames becoming distorted due to wall movement, making doors and windows difficult to open or close.
• Sloping Floors: Uneven settlement causes floors to become noticeably unlevel.
• Separation of Masonry/Elements: Gaps appearing between wall elements, or between wall and ceiling/floor junctions.
• Chimney Separation: Chimneys, often having their own foundations, can settle independently, causing them to lean or pull away from the main structure.

Early detection and expert geotechnical investigation are essential for diagnosing foundation problems and prescribing effective stabilization measures.

2.4 Corrosion of Structural Elements

Corrosion is an electrochemical process that degrades materials, most notably metals, when exposed to an aggressive environment. In structural applications, the corrosion of steel reinforcement within concrete or exposed steel elements is a critical concern, as it directly compromises load-bearing capacity and overall structural integrity (newcastlestructuralengineers.com.au).

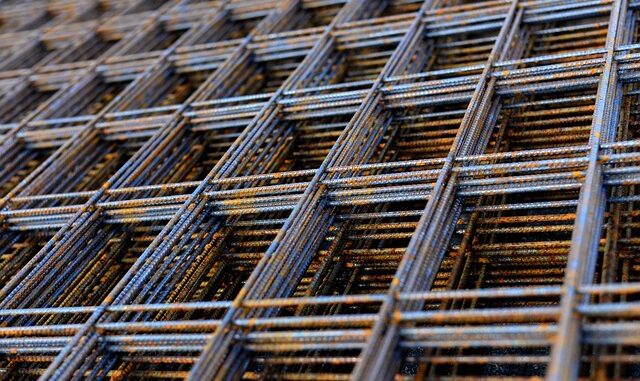

2.4.1 Corrosion of Steel Reinforcement (Rebar) in Concrete

Concrete typically provides a protective alkaline environment (pH > 12.5) that passivates the steel rebar, forming a thin, stable oxide film that prevents corrosion. However, this passivation layer can be destroyed by:

• Carbonation: Atmospheric carbon dioxide (CO2) penetrates the concrete and reacts with calcium hydroxide (Ca(OH)2), reducing the concrete’s pH (de-passivation). Once the carbonation front reaches the rebar, it becomes vulnerable to corrosion if moisture and oxygen are present.
• Chloride Attack: Chlorides, typically from de-icing salts, marine environments, or contaminated aggregates, can penetrate the concrete and directly attack the passivation layer, even in highly alkaline conditions. This is often the most aggressive form of rebar corrosion.

When steel corrodes, it forms iron oxides (rust) which can occupy up to six times the volume of the original steel. This volumetric expansion creates immense internal pressures within the concrete, leading to:

• Cracking and Spalling: The expansive forces cause longitudinal cracks in the concrete, typically running parallel to the rebar. Eventually, pieces of concrete (‘spalls’) break off, exposing the corroded reinforcement.
• Loss of Bond: The bond between the concrete and the rebar is crucial for composite action. Cracking and spalling reduce this bond, diminishing the concrete’s ability to transfer stresses to the steel.
• Reduction in Cross-Sectional Area: The actual corrosion process consumes the steel, reducing its cross-sectional area and thus its tensile strength and load-bearing capacity. In severe cases, this can lead to brittle failure of the element.

2.4.2 Corrosion of Exposed Steel Elements

Structural steel beams, columns, and connections are susceptible to atmospheric corrosion (rusting) when exposed to moisture and oxygen. The rate of corrosion is accelerated by:

• High Humidity and Moisture: Persistent damp conditions provide the necessary electrolyte for the electrochemical process.
• Presence of Contaminants: Industrial pollutants, chlorides (from coastal environments), and acidic rain can accelerate corrosion.
• Poor Protective Coatings: Inadequate or deteriorated paint/galvanization allows moisture and oxygen to reach the steel surface.

Consequences of steel corrosion include:

• Section Loss: Reduction in the effective cross-sectional area of the steel member, decreasing its strength and stiffness.
• Buckling and Instability: Severely corroded slender members are more prone to buckling under compressive loads.
• Connection Failure: Corroded bolts, welds, or connection plates can fail, leading to localized or widespread structural collapse.

Regular inspections and appropriate protective measures (e.g., coatings, cathodic protection, proper concrete cover) are essential for mitigating corrosion risks.

2.5 Deflection and Sagging

Structural elements like beams, slabs, and roofs are designed to have a certain stiffness and limit deflection under load. Excessive or increasing deflection/sagging can indicate a structural problem.

2.5.1 Causes of Excessive Deflection

• Overloading: Imposing loads greater than the design capacity of the element, e.g., heavy equipment or snow accumulation beyond design limits.
• Material Degradation: Weakening of timber due to rot or insect infestation, loss of concrete strength, or section loss in steel due to corrosion.
• Design or Construction Error: Undersized members, inadequate reinforcement, incorrect material properties assumed in design, or improper installation.
• Creep: Long-term deformation of concrete under sustained load, leading to gradual increase in deflection over time.
• Foundation Settlement: Differential settlement can induce secondary bending moments in structural elements, leading to localized sagging.

2.5.2 Impacts of Sagging

• Aesthetic Issues: Visibly uneven floors or ceilings.
• Damage to Non-Structural Elements: Cracking of plaster, tiles, and ceilings; sticking doors/windows; distortion of partitions.
• Serviceability Issues: Bounciness in floors, leading to discomfort.
• Structural Failure: In extreme cases, excessive deflection can precede brittle fracture or collapse.

2.6 Timber Rot and Pest Infestation

In buildings with timber frames, floors, or roofs, biological agents pose significant threats.

• Fungal Decay (Rot): As discussed under water damage (Section 2.2.2), wet rot and dry rot are pervasive issues that metabolize cellulose in timber, leading to loss of mass, strength, and stiffness. This can transform sound timber into a brittle or powdery substance, severely compromising its structural role.
• Pest Infestation: Termites, carpenter ants, and powderpost beetles are among the most destructive timber pests. Termites consume timber from within, leaving only a thin veneer, making damage difficult to detect until severe. Carpenter ants excavate galleries for nesting, while beetles bore holes, creating tunnels and powder (frass). All significantly reduce the effective cross-section and load-bearing capacity of timber members.

Signs include visible fungal growth, musty odors, softened or crumbling timber, presence of frass (wood dust), or visible insect activity. Remediation requires eliminating the moisture source (for rot) or eradicating the pests, followed by replacement or reinforcement of damaged timber.

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

3. Diagnostic Methodologies

The accurate diagnosis of structural issues is a complex process demanding a systematic approach and the application of various investigative techniques. A multi-pronged strategy, combining visual assessment with advanced non-destructive and, where necessary, destructive testing, is essential for uncovering hidden defects and understanding the root cause of observed problems.

3.1 Visual Inspections

Visual inspection remains the foundational step in any structural assessment. It is a cost-effective and immediate method for identifying overt signs of distress and guiding subsequent, more detailed investigations (exactusengineering.com).

3.1.1 Process and Scope

• Systematic Examination: A qualified professional conducts a meticulous visual survey of the entire structure, both interior and exterior. This includes careful scrutiny of foundations, walls (internal and external), ceilings, floors, roof structure, and exposed structural elements.
• Crack Mapping: All visible cracks are documented, noting their location, orientation (vertical, horizontal, diagonal, stepped), width (using crack gauges), length, and pattern. Repeated inspections over time can track crack propagation, providing critical data on ongoing movement.
• Assessment of Deformations: Visual identification of bowing, bulging, sagging, tilting, or unevenness in floors, walls, and rooflines.
• Moisture Indicators: Detection of damp patches, water stains, mold growth, efflorescence, peeling paint, or musty odors indicative of water ingress.
• Material Degradation: Observation of spalling concrete, rusting rebar, rotting timber, deteriorated mortar joints, or delaminated finishes.
• External Factors: Examination of site drainage, landscaping (e.g., large trees near foundations), adjacent construction, and ground conditions for potential influences.

3.1.2 Tools and Documentation

Basic tools include measuring tapes, spirit levels, plumb bobs, crack gauges, binoculars for high-level elements, and cameras for photographic documentation. Detailed sketches, plans, and reports are crucial for recording observations and forming the basis for further analysis. While visual inspections are invaluable for initial screening and identifying overt issues, they have inherent limitations. Many critical defects, such as internal voids, rebar corrosion within sound concrete, or deeply buried foundation problems, are not visible to the naked eye.

3.2 Non-Destructive Testing (NDT)

Non-Destructive Testing methods allow for the evaluation of material properties, detection of hidden defects, and assessment of structural integrity without causing damage to the element being inspected. These techniques are indispensable for a comprehensive understanding of a building’s condition, especially when visual signs are ambiguous or inadequate (smakagency.co).

3.2.1 Key NDT Methods

• Ultrasonic Pulse Velocity (UPV) Testing:
  • Principle: Measures the speed of ultrasonic pulses through a material. The velocity is influenced by the material’s density, elastic properties, and homogeneity.
  • Applications: Primarily used for concrete to estimate compressive strength (indirectly), detect voids, honeycombing, delamination, and assess concrete quality. Lower velocities indicate poorer quality or internal defects. It can also be adapted for timber inspection to detect decay.
  • Advantages: Relatively fast, portable, and non-invasive.
  • Limitations: Requires good surface contact, results can be influenced by rebar presence, and absolute strength correlation requires calibration.
• Ground Penetrating Radar (GPR):
  • Principle: Emits high-frequency electromagnetic waves into a material and detects the reflections from subsurface interfaces or anomalies. The reflected waves create a profile of the subsurface.
  • Applications: Locating rebar, conduits, and post-tensioning cables in concrete; detecting voids, delamination, and changes in concrete thickness; mapping underground utilities; assessing pavement layer thickness; and identifying buried objects or geological features like sinkholes.
  • Advantages: Provides a detailed visual representation of subsurface conditions, fast, and highly versatile.
  • Limitations: Penetration depth is limited by material conductivity (less effective in highly conductive or wet soils), interpretation requires skilled operators.
• Infrared Thermography (IRT):
  • Principle: Detects differences in surface temperature, which can indicate variations in material properties, moisture content, or subsurface defects. Areas with moisture or delaminations often have different thermal masses and thus different surface temperatures when subjected to a heat flux.
  • Applications: Detecting moisture ingress in roofs and walls, identifying areas of energy loss due to poor insulation, locating hidden air leaks, assessing delamination in concrete facades, and identifying thermal bridging.
  • Advantages: Non-contact, rapid, provides a visual thermal map.
  • Limitations: Requires a sufficient temperature difference between the defect and surrounding material, results can be influenced by environmental factors (sunlight, wind).
• Rebound Hammer (Schmidt Hammer) Test:
  • Principle: Measures the rebound of a spring-loaded hammer after it strikes the concrete surface. The rebound value is empirically correlated with the concrete’s surface hardness and, indirectly, its compressive strength.
  • Applications: Quick and simple estimation of concrete surface hardness and uniformity. Useful for identifying areas of low strength or deterioration.
  • Advantages: Portable, inexpensive, easy to use.
  • Limitations: Provides only surface hardness, results are influenced by aggregate type, age of concrete, moisture content, and carbonation. Should be used in conjunction with other tests for accurate strength assessment.
• Pachometer/Covermeter:
  • Principle: Uses electromagnetic induction to locate ferrous materials (rebar) within concrete and measure the concrete cover depth over the reinforcement.
  • Applications: Essential for assessing the adequacy of concrete cover (a key factor in rebar corrosion protection), confirming rebar layout, and avoiding rebar during core drilling.
  • Advantages: Accurate and quick for rebar location and cover measurement.
  • Limitations: Only detects ferrous metals, accuracy can be affected by closely spaced rebar.
• Visual Inspection Aids (Boroscopes, Drones):
  • Boroscopes: Tiny cameras on flexible tubes used to inspect confined spaces, wall cavities, or ducts without extensive demolition.
  • Drones (UAVs): Equipped with high-resolution cameras, drones can provide aerial visual inspections of roofs, facades, and high-rise structures, safely and efficiently accessing areas that are difficult or costly to reach conventionally. They can carry thermal cameras for IRT as well.

3.3 Structural Health Monitoring (SHM)

Structural Health Monitoring (SHM) involves the deployment of sensor networks and data acquisition systems to continuously or periodically monitor the real-time performance and condition of a building’s structural elements. This proactive approach allows for early detection of deviations from normal behavior, facilitating predictive maintenance and preventing catastrophic failures (encardio.com).

3.3.1 Components and Sensor Types

An SHM system typically comprises:

• Sensors: Diverse sensors are strategically placed on structural components to measure critical parameters:
  • Strain Gauges: Measure deformation (strain) in materials, indicating stress levels in beams, columns, or bridges.
  • Accelerometers: Detect vibrations and changes in dynamic characteristics (natural frequencies, damping), which can indicate loosening connections, cracks, or stiffness degradation.
  • Displacement Transducers/Linear Variable Differential Transformers (LVDTs): Measure relative movement, settlement, or crack opening/closing.
  • Tiltmeters: Measure angular displacement or inclination, indicating foundation settlement or wall rotation.
  • Crack Meters: Specifically designed to monitor the width and propagation of individual cracks.
  • Fiber Optic Sensors: Offer high precision and immunity to electromagnetic interference, capable of measuring strain, temperature, and crack development over long distances.
  • Temperature and Humidity Sensors: Monitor environmental conditions that influence material behavior and degradation.
  • Corrosion Sensors: Directly measure the rate of corrosion in embedded steel.
• Data Acquisition System (DAS): Collects data from sensors, processes it, and transmits it for analysis.
• Communication Infrastructure: Wired or wireless networks for data transfer.
• Data Management and Analysis Software: Processes raw data, applies algorithms for anomaly detection, trend analysis, and generates alerts.

3.3.2 Benefits and Applications

• Early Warning Systems: Detect subtle changes in structural behavior before they become critical, allowing for timely intervention.
• Predictive Maintenance: Shift from reactive repairs to condition-based maintenance, optimizing resource allocation and extending service life.
• Damage Assessment: Provide real-time data on structural response during extreme events (earthquakes, high winds), aiding in post-event damage assessment.
• Performance Verification: Confirm design assumptions and monitor the effectiveness of repairs or retrofits.
• Life-Cycle Management: Optimize maintenance schedules and inform decisions regarding rehabilitation or demolition.
• Reduced Inspection Costs: Supplement or reduce the frequency of manual inspections in hard-to-access or high-risk areas.

SHM systems are particularly beneficial for critical infrastructure, heritage structures, and buildings in high-risk environments.

3.4 Destructive Testing (DT) and Material Sampling

While NDT is preferred, sometimes a small degree of localized destructive testing or material sampling is necessary to obtain definitive data on internal material properties or specific defects. These methods involve physically altering the structure to extract samples for laboratory analysis.

• Core Drilling: Extraction of concrete or masonry cores for laboratory testing of compressive strength, density, petrographic analysis (microstructure, aggregate quality), chloride content, carbonation depth, and cement content. This provides direct strength measurements, unlike NDT methods.
• Material Sampling: Collection of samples of timber (for species identification, moisture content, fungal analysis), mortar (for composition analysis), or steel (for metallurgical analysis of corrosion or material properties).
• Load Testing: Application of controlled loads to a structural element (e.g., a floor slab) to directly measure its deflection and verify its load-bearing capacity. This is often a last resort and requires careful planning and safety precautions.

These methods provide highly accurate data but are invasive and typically conducted after NDT has narrowed down suspect areas.

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

4. Remediation Techniques and Costs

Once a structural issue has been accurately diagnosed, a range of remediation techniques can be employed to restore or enhance a building’s integrity. The choice of technique is dictated by the nature and severity of the problem, material type, site conditions, accessibility, and budget. Costs vary significantly based on these factors, requiring detailed assessment and tailored solutions.

4.1 Foundation Repairs

Foundation repair addresses issues of settlement, heave, or inadequate bearing capacity to stabilize the building. The selected method depends heavily on the soil conditions and the extent of foundation movement. Costs are highly variable, often ranging from a few thousand dollars for localized minor repairs to well over $100,000 for extensive or complex interventions (exactusengineering.com).

4.1.1 Common Foundation Repair Methods

• Underpinning: This is the most common method for strengthening or extending existing foundations to a more stable soil stratum. It involves extending the foundation’s depth or increasing its bearing area.
  • Traditional Mass Concrete Underpinning: Excavating sections beneath the existing foundation in a planned sequence, pouring new concrete sections, and allowing them to cure before moving to the next section. This creates a deeper, wider foundation. Suitable for relatively shallow settlement and stable ground conditions. Cost implications: Labor-intensive, slower, can be disruptive.
  • Piled Underpinning (Mini-Piles/Screw Piles): Driving or screwing slender piles (steel or concrete) down to competent bearing strata. The existing foundation is then supported by these piles via a new concrete needle beam or bracket system. Ideal for deep-seated settlement, poor soil conditions, or limited access. Cost implications: Higher material cost for piles, specialized equipment, but faster installation for deep foundations.
  • Resin Injection (Chemical Grouting): Injecting expanding geo-polymeric resins into the ground beneath the foundation. The resin expands and compacts the soil, increasing its bearing capacity and gently lifting the foundation to its original level. Non-invasive and fast. Cost implications: Can be more expensive per cubic meter but minimal disruption, suitable for specific soil types and minor lifting.
• Slabjacking (Mudjacking/Polyurethane Injection):
  • Principle: Used to lift and stabilize settled concrete slabs (e.g., basement floors, driveways, sidewalks). Small holes are drilled through the slab, and a slurry (mudjacking) or expanding polyurethane foam (polyurethane injection) is pumped underneath. The pressure from the injected material lifts the slab back to its desired level and fills voids. Polyurethane is lighter, cures faster, and requires smaller injection holes.
  • Applications: Effective for correcting uneven concrete slabs where the underlying soil has settled or eroded.
  • Cost implications: Generally less expensive and less disruptive than full slab replacement or extensive underpinning. Mudjacking often $3-$6 per square foot; polyurethane injection $5-$10 per square foot.
• Piering (Push Piers/Helical Piers):
  • Principle: Prefabricated steel piers are hydraulically driven (push piers) or screwed (helical piers) into the ground until they reach load-bearing strata. Brackets are then attached to the existing foundation, connecting it to the piers. The structure is then lifted and stabilized.
  • Applications: Common for residential and light commercial structures experiencing differential settlement. Effective in varying soil conditions.
  • Cost implications: Costs vary widely, from $1,000 to $3,000 per pier, but a typical house may require 10-20 piers, pushing costs to $20,000-$60,000. Extensive repairs can exceed $100,000 (exactusengineering.com).
• Soil Stabilization: Techniques like compaction grouting, jet grouting, or vibro-compaction can improve the density and strength of loose or compressible soils beneath a foundation, reducing future settlement. These are generally specialized and costly operations.

Factors influencing cost include the depth of required stabilization, soil conditions, accessibility, necessary permits, labor rates, and the specific contractor.

4.2 Waterproofing and Damp Proofing

Addressing water intrusion is critical for preventing structural decay and maintaining a healthy indoor environment. Remediation involves a combination of exterior and interior measures, with costs depending on the scale and complexity of the building and the source of the dampness (buildritesydney.com.au).

4.2.1 Exterior Waterproofing

These methods prevent water from reaching the foundation or external walls:

• Exterior Waterproofing Membranes: Applying a waterproof barrier (liquid-applied or sheet membrane) to the exterior of foundation walls below grade. This requires excavation around the perimeter of the building. Often combined with a drainage board to protect the membrane and facilitate water flow to the drains.
  • Cost implications: Exterior waterproofing can average $5 to $10 per square foot, but excavation costs, which can be substantial, are often extra (buildritesydney.com.au). Total project costs for a typical basement can range from $10,000 to $30,000+.
• Improved Drainage Systems:
  • Footing Drains (French Drains): Installing perforated pipes wrapped in filter fabric and gravel around the exterior perimeter of the foundation, below the footing level. These collect subsurface water and divert it away from the foundation.
  • Sump Pumps: Installed in a pit in the basement floor, a sump pump collects water from the footing drains or slab and pumps it away from the house.
  • Grading and Landscaping: Ensuring the ground slopes away from the building at a sufficient gradient (typically 6 inches over 10 feet) to direct surface water away. Proper landscaping (avoiding impervious surfaces that trap water, appropriate plant choices) also plays a role.
  • Gutter and Downspout Management: Ensuring gutters are clean, properly sloped, and downspouts extend several feet away from the foundation to prevent water accumulation near the base.

4.2.2 Interior Damp Proofing and Water Management

These techniques manage water that has already entered the structure or mitigate conditions contributing to dampness:

• Interior Perimeter Drains and Sump Pumps: If exterior excavation is not feasible, internal drain tile systems can be installed along the basement wall-floor joint, channeling water to a sump pump for removal. This manages water but doesn’t prevent entry.
• Vapor Barriers: Applying waterproof coatings or membranes to interior basement walls and floors to prevent moisture vapor transmission. This does not address hydrostatic pressure but helps with general dampness.
• Damp-Proof Course (DPC) Installation/Repair: For rising damp, a new DPC can be inserted into masonry walls using various methods (e.g., injecting chemical creams, physical insertion of impervious membranes). Repairing bridged DPCs (e.g., by lowering external ground levels) is also crucial.
• Ventilation and Dehumidification: Improving airflow in crawl spaces and basements, installing exhaust fans in bathrooms, and using dehumidifiers to reduce ambient humidity and prevent condensation-related dampness and mold growth.
• Crack Injection: For non-moving cracks in concrete foundations, injecting epoxy or polyurethane resins can seal them against water intrusion. Epoxy provides structural repair, while polyurethane provides a flexible, watertight seal.

Total costs for damp proofing and waterproofing can vary significantly based on the root cause and extent, ranging from a few hundred dollars for minor fixes (e.g., gutter repair) to tens of thousands for full basement waterproofing systems.

4.3 Structural Reinforcement

Structural reinforcement techniques are employed when existing structural elements have lost their load-bearing capacity due to degradation, damage, or when increased loads are anticipated. The goal is to restore or enhance strength, stiffness, and ductility. The cost of reinforcement is highly dependent on the extent of damage, the type of material, and the complexity of installation (newcastlestructuralengineers.com.au).

4.3.1 Common Reinforcement Methods

• Steel Reinforcement (Jacketing/Plate Bonding):
  • Adding New Steel Members: Installing new steel beams, columns, or bracing to supplement or replace weakened primary structural elements. This often involves welding or bolting new sections to existing ones or creating entirely new support systems.
  • Steel Plate Bonding/Jacketing: Attaching steel plates to the surface of concrete or timber beams/columns using epoxies or bolts. This increases the bending strength and stiffness of the element. For columns, a steel ‘jacket’ (e.g., angle sections at corners connected by battens) can significantly enhance confinement and axial capacity.
  • Cost implications: Highly variable. For smaller elements, prices might range from $100 to $300 per linear foot (newcastlestructuralengineers.com.au). Larger, complex steel installations can easily run into hundreds of thousands of dollars.
• Fibre-Reinforced Polymers (FRP):
  • Principle: High-strength, lightweight composite materials (e.g., carbon fiber, glass fiber, aramid fiber) are impregnated with epoxy resin and bonded to the surface of existing concrete, masonry, or timber elements. These act as external reinforcement, primarily providing tensile strength and confinement.
  • Applications: Strengthening beams for flexure or shear, increasing column confinement and axial capacity, seismic retrofit of walls and columns, enhancing slab strength, and repairing blast-damaged structures. They are excellent for repairing structures where access or weight is a concern.
  • Advantages: High strength-to-weight ratio, excellent corrosion resistance, minimal increase in member size, relatively fast application.
  • Cost implications: FRP materials can be expensive per unit, but overall installation costs can be competitive due to speed and minimal disruption. Typically, $50-$200 per square foot depending on the number of layers and material type.
• Grouting and Crack Injection:
  • Principle: For cracks in concrete or masonry that require structural repair and sealing, specialized grouts (cementitious, epoxy, polyurethane) are injected under pressure into the crack. Epoxy injection can restore monolithic behavior and strength, while polyurethane seals against water.
  • Applications: Repairing structural cracks in concrete foundations, beams, columns, or masonry walls.
  • Cost implications: Varies by crack length and width, type of resin, and accessibility. Typically $10-$50 per linear foot.
• Shoring and Propping:
  • Principle: Temporary or permanent support systems (steel props, timber shoring, scaffolding) are installed to support overloaded or damaged structural elements, preventing collapse during repair or as a long-term solution.
  • Applications: Supporting failing beams, floors, or roof structures; providing temporary support during demolition or renovation.
• Material Replacement:
  • Timber Replacement: For severely rotted or pest-infested timber members, partial or full replacement with new, treated timber is often the most effective solution. Adjacent sound timber may require fungicidal or insecticidal treatment.
  • Concrete Repair: For spalled or deteriorated concrete, the damaged material is removed, exposed rebar is cleaned/treated, and new repair mortar or concrete is applied.

Other cost factors include design fees from structural engineers, permits, site accessibility, demolition/preparation work, waste disposal, and post-remediation finishes.

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

5. Legal Implications and Disclosure Requirements

Structural issues in a property carry significant legal ramifications for owners, sellers, and professionals involved in construction and repair. Understanding these obligations is crucial to avoid litigation, financial penalties, and reputational damage.

5.1 Liability and Legal Considerations

Liability for structural defects can be complex, involving multiple parties and legal theories. The specific legal framework varies significantly by jurisdiction, but common principles apply (legislationhub.com).

• Property Owners’ Liability: Property owners generally have a duty to maintain their premises in a safe condition. Failure to address known structural defects can lead to liability for injuries sustained by occupants, visitors, or workers (e.g., premises liability claims). In the context of property transactions, owners can be held liable for misrepresentation or failure to disclose known defects to prospective buyers.
• Developers’ and Builders’ Liability: Developers and builders typically owe a duty to construct properties in a workmanlike manner and in accordance with building codes and specifications. They may be liable for defects arising from faulty design, poor construction, or substandard materials. Liability can extend to subsequent owners, especially for latent defects (those not readily discoverable).
• Contractors’ and Subcontractors’ Liability: Contractors are liable for the quality of their work and adherence to contractual agreements. Subcontractors are generally liable to the primary contractor for their specific scope of work.
• Design Professionals’ (Engineers, Architects) Liability: Structural engineers and architects owe a duty of care to design structures that are safe, fit for purpose, and comply with relevant codes and standards. They can be held liable for negligence in design, inadequate specifications, or improper supervision.
• Legal Theories:
  • Negligence: Failure to exercise the standard of care that a reasonably prudent person or professional would have exercised under similar circumstances (e.g., a builder using substandard materials, an engineer miscalculating loads).
  • Breach of Contract: Failure to fulfill the terms and conditions of a contract (e.g., builder not adhering to plans, contractor not completing work as agreed).
  • Breach of Warranty: Violation of express (written) or implied (e.g., habitability, fitness for purpose) warranties. Many jurisdictions have implied warranties for new construction.
  • Strict Liability: In some cases, particularly for inherently dangerous activities or defective products, liability may be imposed regardless of fault. This is less common for construction defects but can apply to product manufacturers.
• Consequences: Legal actions can result in orders for specific performance (rectification of defects), monetary damages (cost of repairs, diminution in value, relocation expenses, loss of income), punitive damages, and legal fees.

5.2 Disclosure Requirements

Disclosure requirements govern what information a seller must provide to a buyer about a property’s condition. These laws vary significantly by jurisdiction, but generally aim to protect buyers from purchasing properties with undisclosed major defects (legislationhub.com).

• Material Defects: Most disclosure laws focus on ‘material defects,’ which are those that significantly affect the value, desirability, habitability, or safety of the property. Structural issues, such as foundation problems, severe cracking, or water damage, almost invariably qualify as material defects.
• ‘As Is’ Clauses: While some contracts may include ‘as is’ clauses, these typically do not absolve a seller from disclosing known material defects, especially those that are not readily apparent through a reasonable inspection. Such clauses usually relate to the buyer accepting observable defects, not hidden ones.
• Seller Disclosure Forms: Many jurisdictions require sellers to complete a standardized disclosure form detailing their knowledge of the property’s condition, including structural integrity, water issues, past repairs, and any known hazards. It is crucial for sellers to be honest and thorough, as misrepresentation or fraudulent concealment can lead to severe penalties.
• Consequences of Non-Disclosure: If a seller fails to disclose a known structural defect that materially affects the property, they can face legal action from the buyer. Remedies for the buyer may include:
  • Rescission of Contract: The buyer may be able to cancel the purchase agreement.
  • Damages: The buyer may sue for monetary compensation to cover the cost of repairs, loss of property value, and other related expenses.
  • Fraud: In cases of intentional concealment, criminal charges or punitive damages may be sought.

It is highly advisable for sellers to commission their own pre-listing structural inspections to identify and address any issues, or at least be fully informed, enabling accurate disclosure.

5.3 Statutes of Limitations and Repose

These statutes set the time limits within which legal claims related to construction defects can be brought. Understanding these periods is crucial for both property owners seeking recourse and professionals defending against claims (legislationhub.com).

• Statute of Limitations: This dictates the time period after a cause of action accrues (e.g., when a defect is discovered or should have been discovered) within which a lawsuit must be filed. For latent structural defects, the ‘discovery rule’ often applies, meaning the clock starts when the defect is reasonably discoverable, not necessarily when the construction was completed.
• Statute of Repose: This is a much stricter time limit that begins running from a specific event, usually the date of substantial completion of construction, regardless of when the defect is discovered. It acts as an absolute bar to lawsuits, even if the defect becomes apparent years later. Its purpose is to provide a definite end to liability for designers and contractors.
• Variations: Both statutes vary significantly by state or country, typically ranging from 2 to 10 years, and can have different periods for patent (obvious) versus latent defects.

5.4 Insurance and Liability

Insurance coverage for structural defects is a critical consideration for both property owners and construction professionals. Policies are complex, and understanding their limitations is paramount (exactusengineering.com).

• Property Insurance (Homeowner’s/Commercial Property): These policies typically cover sudden and accidental damage caused by specified perils (e.g., fire, storm, burst pipes). However, they frequently exclude damage resulting from:
  • Gradual Deterioration: Wear and tear, rot, mold, or corrosion that occurs over time.
  • Neglected Maintenance: Damage that could have been prevented by routine maintenance.
  • Earth Movement: Unless specifically added as an endorsement (e.g., earthquake or landslide coverage), damage from earth movement (including most types of settlement or subsidence) is often excluded.
  • Faulty Workmanship/Design: Damage caused by inherent defects in construction or design.
• Professional Liability Insurance (Errors & Omissions – E&O): This covers architects and engineers for claims arising from negligence, errors, or omissions in their professional services (design, advice).
• General Liability Insurance: Covers contractors for bodily injury or property damage to third parties caused by their operations.
• Builder’s Risk Insurance: For new construction or major renovations, this policy covers damage to the structure during the construction phase.

Property owners must thoroughly review their insurance policies, understand exclusions, and potentially seek specialized coverage (e.g., specific foundation coverage) if their property is in a high-risk area. Proactive maintenance is often a prerequisite for coverage and can prevent issues that insurers typically do not cover.

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

6. Selecting Qualified Structural Engineers and Contractors

The successful resolution of structural issues hinges critically on the expertise and integrity of the professionals engaged. Hasty or uninformed selection can lead to flawed diagnoses, ineffective repairs, increased costs, and prolonged distress. A rigorous selection process is therefore non-negotiable (aureliahouses.com).

6.1 Qualifications and Credentials

Verifying the professional standing and technical competence of prospective engineers and contractors is the primary step.

• Licensing and Certification:
  • Structural Engineers: Ensure they are licensed Professional Engineers (PE) or Chartered Engineers (CEng) in the relevant jurisdiction, specializing in structural engineering. This confirms they have met educational, experience, and examination requirements and adhere to a professional code of conduct. Membership in professional bodies (e.g., Institution of Structural Engineers, American Society of Civil Engineers) is also a strong indicator of commitment to professional standards.
  • Contractors: Verify they hold the necessary contractor’s licenses for the type of work involved (e.g., general contractor, foundation repair specialist). Check if their license is current and if they have any disciplinary actions against them through state licensing boards.
• Specialized Experience: Beyond general qualifications, seek professionals with specific experience relevant to your project. For instance, if you have a historic building, find an engineer with expertise in heritage structures and traditional building materials. If the issue is foundation repair, choose a contractor specializing in that field. Inquire about similar projects they have completed.
• Insurance Coverage: Confirm that both the engineer and contractor carry adequate insurance, including:
  • Professional Indemnity/Errors & Omissions (E&O) Insurance: For engineers, this covers claims arising from their professional negligence or errors in design or advice.
  • General Liability Insurance: For contractors, this protects against claims of bodily injury or property damage caused by their work.
  • Worker’s Compensation: Ensures coverage for their employees in case of injury on your property.

6.2 Reputation and References

An engineer’s or contractor’s past performance is a strong predictor of future success. Due diligence in this area is crucial.

• Client Testimonials and References: Request a list of recent clients for whom they have performed similar work. Contact these references directly to inquire about:
  • Their satisfaction with the quality of work.
  • Adherence to timelines and budgets.
  • Communication effectiveness.
  • Professionalism and responsiveness to issues.
  • Overall experience and whether they would rehire the professional (aureliahouses.com).
• Portfolio Review: Ask to see a portfolio of completed projects. This can demonstrate their capabilities and the types of structural challenges they have successfully overcome.
• Online Reviews and Industry Associations: Check reputable online review platforms and verify their standing with professional associations or consumer protection agencies (e.g., Better Business Bureau).

6.3 Proposal and Cost Estimates

Transparency and clarity in the proposal phase are paramount to avoid misunderstandings and disputes down the line. Do not rely on verbal agreements.

• Detailed Scope of Work: The proposal from both the engineer and contractor should clearly delineate the scope of services. For engineers, this includes the extent of inspection, diagnostic methods, analysis, reports, and drawings. For contractors, it specifies the exact remediation techniques, materials to be used, quality standards, and detailed stages of work.
• Itemized Cost Estimates: Obtain a comprehensive, itemized breakdown of all costs, including labor, materials, equipment rental, permit fees, and any provisional sums for unforeseen issues. Beware of excessively low bids, which may indicate cutting corners or a lack of understanding of the scope. Conversely, excessively high bids warrant scrutiny.
• Timeline: The proposal should include a clear timeline for the project, from commencement to completion, including key milestones. Understand potential factors that could delay the project.
• Payment Schedule: Agree on a clear payment schedule, often linked to project milestones. Avoid paying a large upfront deposit. A typical structure involves an initial deposit, progress payments, and a final payment upon satisfactory completion.
• Warranties and Guarantees: Inquire about warranties on workmanship and materials. Understand what is covered, for how long, and the process for making a claim. A reputable contractor will stand behind their work.
• Contractual Agreement: Ensure all agreed-upon terms are formalized in a written contract signed by all parties. The contract should clearly define responsibilities, liabilities, change order procedures, dispute resolution mechanisms, and termination clauses. Seek legal advice if the contract is complex or contains ambiguous clauses.

Thorough vetting and clear communication from the outset are critical investments that safeguard against significant problems during and after structural repair work.

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

7. Conclusion

The proactive and expert management of structural issues is an indispensable facet of responsible property ownership and effective asset management. The integrity of a building’s structure directly underpins its safety, functionality, market valuation, and long-term viability. As this report has detailed, structural problems range from common aesthetic concerns like superficial cracking to grave hazards like foundation failure and material corrosion, each demanding a nuanced understanding and tailored intervention.

Through the systematic application of thorough visual inspections, advanced non-destructive testing methodologies, and, where appropriate, targeted destructive analyses, professionals can accurately diagnose the root causes and extent of structural distress. Subsequent remediation, whether through sophisticated foundation stabilization, comprehensive waterproofing, or innovative structural reinforcement, must be executed with precision and adherence to engineering best practices.

Beyond the technical aspects, navigating the intricate legal landscape, including stringent disclosure requirements and liability frameworks, is paramount for all stakeholders. Property owners bear a significant responsibility for diligent maintenance and transparent dealings, while qualified structural engineers and contractors are entrusted with the critical task of delivering sound diagnostic advice and effective, durable repair solutions. The selection of these professionals must be underpinned by rigorous verification of credentials, a thorough assessment of reputation, and meticulous review of detailed proposals.

Ultimately, a commitment to regular structural health monitoring, timely intervention, and unwavering adherence to professional and legal obligations ensures that buildings remain resilient, safe, and valuable assets for future generations. By embracing the comprehensive strategies outlined in this report, property owners and professionals alike can effectively mitigate the inherent risks associated with structural challenges, preserving the built environment and securing its enduring legacy.

Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.

References

• (buildritesydney.com.au)
• (buildritesydney.com.au)
• (newcastlestructuralengineers.com.au)
• (exactusengineering.com)
• (smakagency.co)
• (encardio.com)
• (legislationhub.com)
• (aureliahouses.com)
