Abstract
Attic insulation plays a pivotal role in enhancing energy efficiency, reducing utility costs, and improving indoor comfort. This research delves into the various insulation materials—fiberglass batts, blown-in cellulose, spray foam, rigid foam, and mineral wool—examining their thermal resistance (R-values), installation methodologies, cost-effectiveness, environmental implications, and payback periods. Additionally, the study explores essential aspects such as air sealing techniques, ventilation requirements, and methods for assessing existing insulation to ensure optimal performance and compliance with building codes.
Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.
1. Introduction
The attic serves as a critical component in a building’s thermal envelope, significantly influencing energy consumption and indoor climate. Effective insulation in this space mitigates heat transfer, thereby reducing heating and cooling demands. This report provides an in-depth analysis of attic insulation, focusing on material properties, installation practices, economic considerations, environmental impacts, and strategies for performance optimization.
Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.
2. Insulation Materials and Their Properties

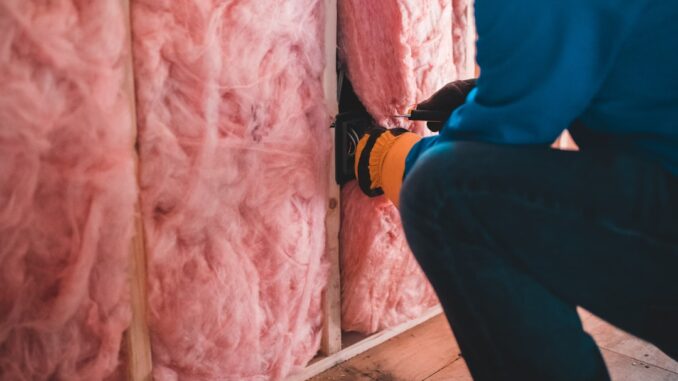

2.1 Fiberglass Batts
Fiberglass batts are pre-formed panels composed of fine glass fibers. They are widely used due to their affordability and ease of installation. The R-value of fiberglass batts typically ranges from 3.0 to 3.5 per inch of thickness, depending on the density and specific formulation. However, their performance can be compromised if not installed correctly, as gaps and compression can reduce their effectiveness.
2.2 Blown-In Cellulose
Cellulose insulation is made from recycled paper products treated with fire retardants. It is available in loose-fill form and can be blown into attics, wall cavities, and other spaces. Cellulose has an R-value of approximately 3.4 to 3.8 per inch. Its ability to conform to irregular spaces allows for comprehensive coverage, reducing thermal bridging. Additionally, cellulose has a high recycled content, making it an environmentally friendly option. However, proper installation is crucial to prevent settling over time, which can diminish its insulating properties.
2.3 Spray Foam Insulation
Spray foam insulation consists of a two-component mixture that expands upon application, filling gaps and forming an airtight seal. There are two primary types: open-cell and closed-cell spray foam. Open-cell spray foam has an R-value of about 3.5 per inch, while closed-cell spray foam offers a higher R-value of approximately 6.0 to 7.0 per inch. The expansion of spray foam allows it to fill cavities and seal gaps effectively, enhancing air sealing and reducing moisture infiltration. However, it is more expensive than other insulation materials, and its application requires professional expertise.
2.4 Rigid Foam Insulation
Rigid foam insulation, or foam board, is available in various materials, including expanded polystyrene (EPS), extruded polystyrene (XPS), and polyisocyanurate (PIR). The R-values per inch for these materials are as follows:
- EPS: 3.6 to 4.2
- XPS: 4.5 to 5.0
- PIR: 5.8 to 6.5
Rigid foam boards are lightweight, easy to handle, and provide a continuous thermal barrier. They are particularly effective in areas where space is limited, such as cathedral ceilings. However, they can be more expensive than fiberglass or cellulose and may require additional measures to address potential moisture issues.
2.5 Mineral Wool (Rock Wool)
Mineral wool insulation is made from natural or recycled minerals, such as basalt or slag, which are melted and spun into fibers. It has an R-value of approximately 3.0 to 3.3 per inch. Mineral wool is non-combustible, providing excellent fire resistance, and is also water-repellent, reducing the risk of mold growth. Its density offers soundproofing benefits, making it suitable for noise-sensitive areas. However, it is generally more expensive than fiberglass and may be more challenging to install due to its weight.
Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.
3. Installation Methods and Cost-Effectiveness
3.1 Installation Techniques
The effectiveness of insulation is heavily influenced by the quality of installation. Common installation methods include:
-
Batt and Roll Insulation: Suitable for standard stud and joist spacing, requiring careful cutting and fitting to avoid gaps.
-
Loose-Fill Insulation: Blown into place using specialized equipment, ideal for attics with irregular shapes.
-
Spray Foam Insulation: Applied using spray equipment, expanding to fill gaps and cracks, providing an airtight seal.
Each method has its own set of requirements and considerations, including the need for professional expertise, especially for spray foam applications.
3.2 Cost Considerations
The initial cost of insulation materials varies:
-
Fiberglass Batts: Generally the least expensive.
-
Cellulose: Moderately priced, with costs influenced by the need for professional installation.
-
Spray Foam: The most expensive, due to material costs and the necessity for professional application.
While spray foam has a higher upfront cost, its superior air sealing properties can lead to significant energy savings over time, potentially offering a favorable return on investment.
Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.
4. Environmental Considerations
4.1 Recycled Content
Materials like cellulose have a high recycled content, contributing to sustainability efforts. Utilizing recycled materials reduces the demand for virgin resources and minimizes landfill waste.
4.2 Manufacturing Impact
The environmental impact of insulation materials varies. For instance, the production of fiberglass and foam insulations involves energy-intensive processes and the use of chemicals. In contrast, cellulose insulation has a lower environmental footprint due to its recycled content and less energy-intensive manufacturing process.
4.3 Disposal and Longevity
Most insulation materials are durable and do not degrade over time. However, disposal practices vary. Materials like cellulose and fiberglass can be recycled, while others may contribute to landfill waste if not disposed of properly.
Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.
5. Performance Optimization
5.1 Air Sealing Techniques
Effective air sealing is crucial for maximizing insulation performance. Techniques include:
-
Sealing Gaps and Cracks: Using caulk or foam sealants around windows, doors, and other penetrations.
-
Weatherstripping: Applying to movable components like doors and windows to prevent air leaks.
-
Attic Bypass Sealing: Addressing common attic bypasses such as recessed lighting, chimneys, and ductwork penetrations.
5.2 Ventilation Requirements
Proper attic ventilation is essential to prevent moisture buildup and maintain insulation effectiveness. Building codes generally require a free vent area of one square foot for each 150 square feet of ceiling. Continuous baffles at eaves should be installed to prevent insulation from blocking airflow. While fan-powered ventilation can be used, natural ventilation often achieves similar results without the risk of depressurizing the attic. (energyresearch.ucf.edu)
5.3 Assessing Existing Insulation
To evaluate existing insulation levels:
-
Measure Depth: Use a ruler or tape measure to determine the insulation depth in multiple areas.
-
Calculate R-Value: Multiply the depth by the R-value per inch for the specific material.
-
Compare to Standards: Refer to local building codes or ENERGY STAR recommendations to determine if the current insulation meets or exceeds required R-values. (energystar.gov)
Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.
6. Conclusion
Attic insulation is a critical factor in enhancing energy efficiency and indoor comfort. A thorough understanding of the various insulation materials, their properties, installation methods, and environmental impacts enables homeowners and professionals to make informed decisions. Implementing effective air sealing, ensuring proper ventilation, and regularly assessing insulation levels are essential practices for optimizing attic performance and achieving long-term energy savings.
Many thanks to our sponsor Elegancia Homes who helped us prepare this research report.
References
-
“Building insulation material.” Wikipedia, en.wikipedia.org/wiki/Building_insulation_material.
-
“Cellulose insulation.” Wikipedia, en.wikipedia.org/wiki/Cellulose_insulation.
-
“R-value (insulation).” Wikipedia, en.wikipedia.org/wiki/R-value_%28insulation%29.
-
“Attic Insulation and Ventilation.” Florida Solar Energy Center, energyresearch.ucf.edu/research/buildings-research/roof-assembly/attic-insulation-ventilation/.
-
“Well-Insulated and Sealed Attic.” ENERGY STAR, www.energystar.gov/products/energy_star_home_upgrade/attic_insulation.
-
“Energy Code Ace – Mechanical Ventilation for Additions and Alterations.” Energy Code Ace, images1.energycodeace.com/content/947-mechanical-ventilation-for-additions-and-alterations-th.
